您的位置:首頁  >  產品中心  >  軸承產品  >  HRB哈爾濱軸承 2213ATN 調心球軸承

HRB哈爾濱軸承 2213ATN 調心球軸承

品牌:HRB哈爾濱軸承

類型:調心球軸承

新型號:2213ATN

舊型號:

內徑:65 mm

外徑:120 mm

厚度:31 mm

在線詢價 技術咨詢

產品尺寸與參數

軸承代號
圓柱孔
2213ATN
圓錐孔
2213AKTN
計算系數
e
0.24
Y 1
2.60
Y 2
4.10
Y 0
2.80
外形尺寸(mm)
d
65
D
120
B
31
r 1,2 min
1.5
額定載荷(kN)
Cr
57.20
Cor
20.00
極限轉速(r/min)
脂潤滑
5000
油潤滑
6000

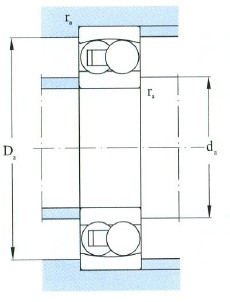

安裝尺寸(mm)
d a min
73.0
D a max
112.0
r a max
1.5
重量 (參考) (kg)
重量 (參考) (kg)
1.4500
