您的位置:首頁  >  產品中心  >  軸承產品  >  ZWZ瓦房店軸承 7318ACM/DB 角接觸球軸承

ZWZ瓦房店軸承 7318ACM/DB 角接觸球軸承

品牌:ZWZ瓦房店軸承

類型:角接觸球軸承

新型號:7318ACM/DB

舊型號:

內徑:90 mm

外徑:190 mm

厚度:86 mm

在線詢價 技術咨詢

產品尺寸與參數

基本尺寸 mm
d
90
D
190
2B
86
r 12
3
r 34
1.1
軸承代號
軸承代號
7318ACM/DB
極限轉速 r/min
脂潤滑
4500
油潤滑
6300
重量 kg
重量 Kg
12.4
基本額定載荷 KN
Cr
286
Cor
305

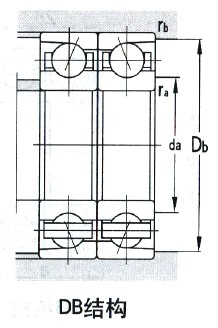

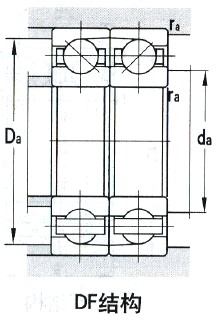

安裝相關尺寸 mm
da(min)
104
Da(max)
-
Db(max)
173
ra(max)
2.5
rb(max)
1
作用點a

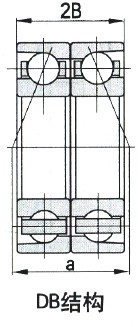

背面 組合(DB)
108.2

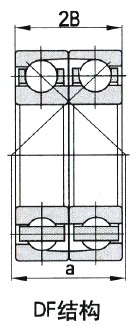

正面 組合(DF)
-

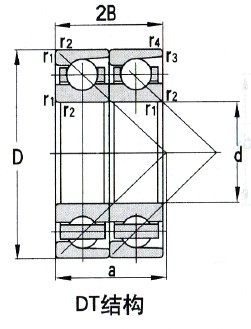

串聯 組合(DT)
-
