您的位置:首頁  >  產品中心  >  軸承產品  >  HRB哈爾濱軸承 NN3038K/W33 圓柱滾子軸承

HRB哈爾濱軸承 NN3038K/W33 圓柱滾子軸承

品牌:HRB哈爾濱軸承

類型:圓柱滾子軸承

新型號:NN3038K/W33

舊型號:

內徑:190 mm

外徑:290 mm

厚度:75 mm

在線詢價 技術咨詢

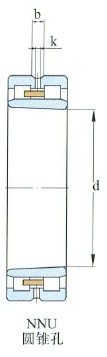

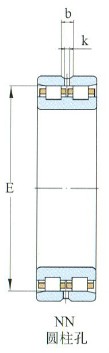

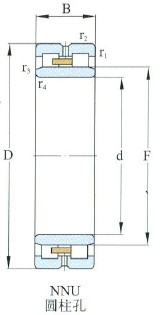

產品尺寸與參數

軸承代號
圓柱孔
圓錐孔
NN3038K/W33
外形尺寸(mm)
d
190
D
290
B
75
r 1,2 min
2.1
Fw
Ew
265.0
b
14
k
4.5
額定載荷(kN)
Cr
645.0
Cor
1058.0
極限轉速(r/min)
脂潤滑
2600
油潤滑
3000

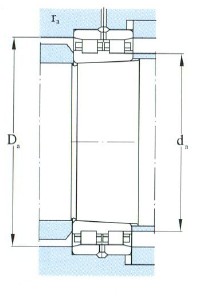

安裝尺寸(mm)
d a min
201.0
d a max
d b min
D a max
279.0
D a min
267
r a max
2.0
重量 (參考) (圓錐孔) (kg)
重量 (參考) (圓錐孔) (kg)
17.800
